Product

, ,

SNK-5.12K-BoxH (Customizable)

  • Hydraulic plates form long‑life modules
  • Metal shell, ultra‑safe
  • High‑temp fire spray
  • Precise PCB, rapid protection
  • Eve A+ Cells
  • Customized Gold‑grade BMS

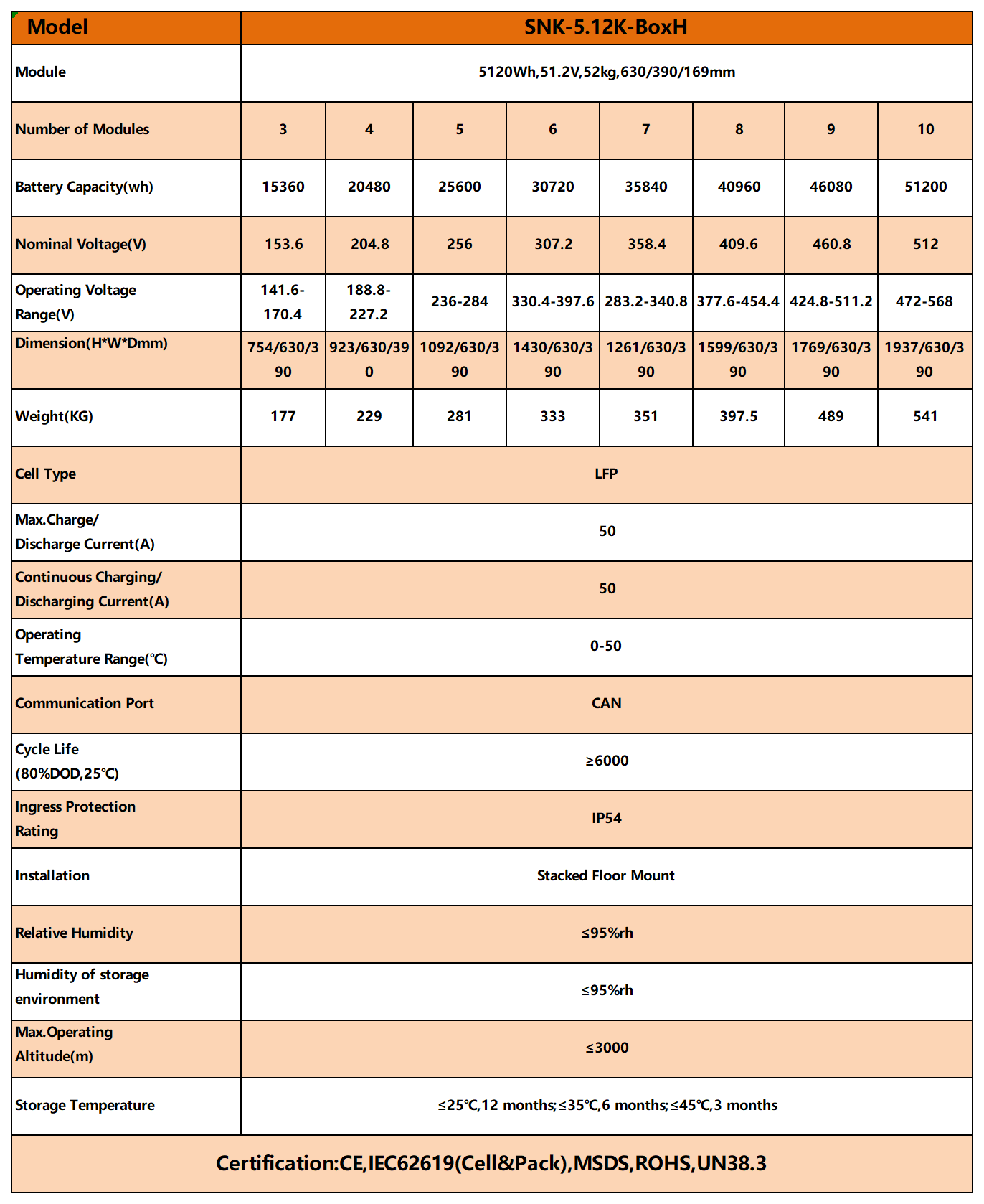

Module

5120Wh, 51.2V, 52kg, 630/390/169mm
Number of Modules

3, 4, 5, 6, 7, 8, 9, 10
Battery Capacity(wh)

15360, 20480, 25600, 30720, 35840, 40960, 46080, 51200
Nominal Voltage(V)

153.6, 204.8, 256, 307.2, 358.4, 409.6, 460.8, 512
Operating Voltage Range(V)

141.6‑170.4, 188.8‑227.2, 236‑284, 330.4‑397.6, 283.2‑340.8, 377.6‑454.4, 424.8‑511.2, 472‑568
Dimension (HWD mm)

754*630*390, 923*630*390, 1092*630*390, 1430*630*390, 1261*630*390, 1599*630*390, 1769*630*390, 1937*630*390
Weight(KG)

177, 229, 281, 333, 351, 397.5, 489, 541
Cell Type

LFP
Max.Charge/Discharge Current(A)

50
Continuous Charging/Discharging Current(A)

50
Operating Temperature Range(℃)

0‑50
Communication Port

CAN
Cycle Life (80%DOD,25℃)

≥6000
Ingress Protection Rating

IP54
Installation

Stacked Floor Mount
Relative Humidity

≤95%rh
Humidity of storage environment

≤95%rh
Max.Operating Altitude(m)

≤3000
Storage Temperature

≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months
Certification

CE,IEC62619(Cell&Pack),MSDS,ROHS,UN38.3
