Product

SNK-1P12K16-Allinone

  • Save installation space
  • Easy to install
  • Cost‑effective
  • Highly scalable

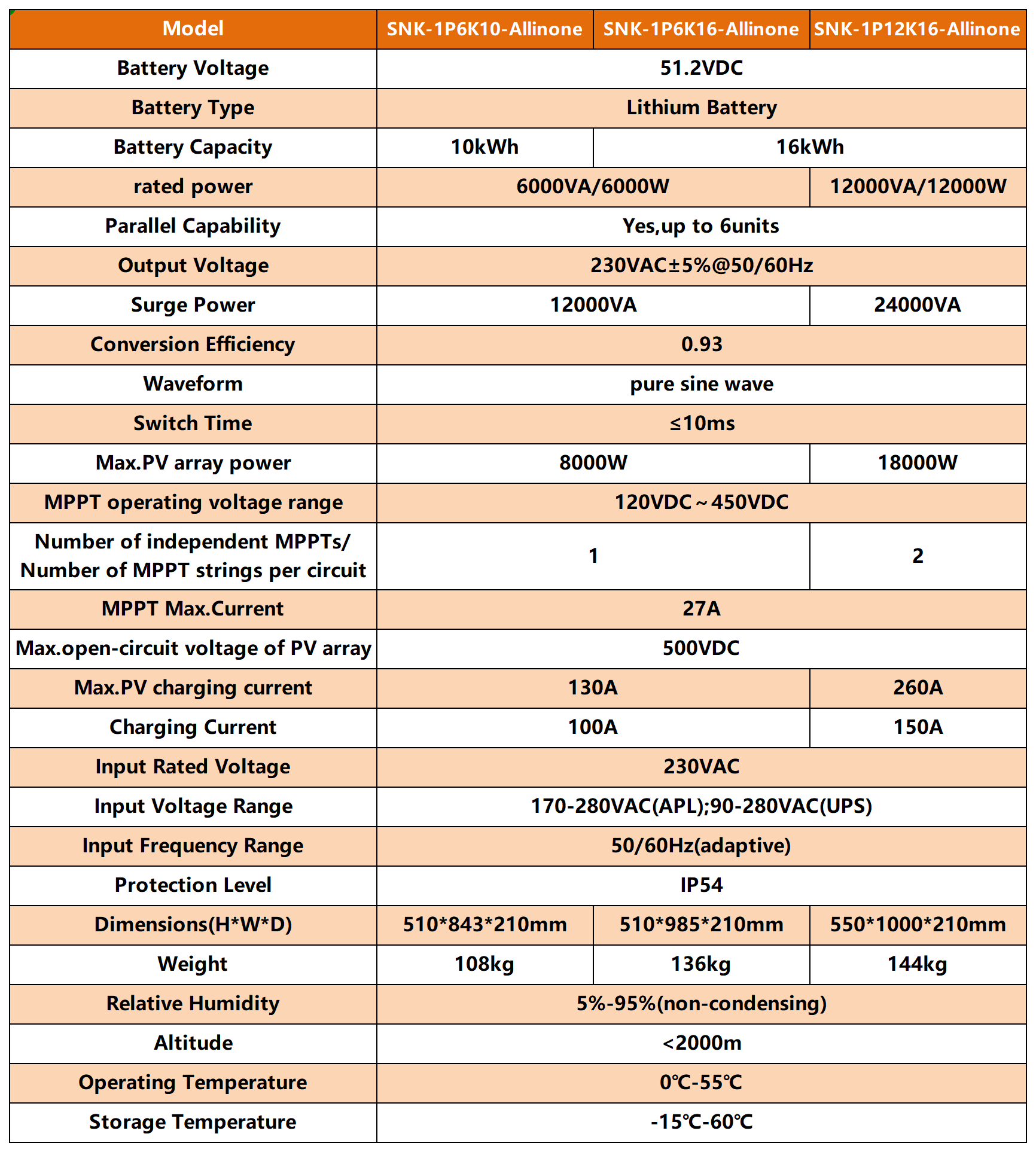

Battery Voltage

51.2VDC
Battery Capacity

16kWh
rated power

12000VA/12000W
Parallel Capability

Yes,up to 6units
Output Voltage

230VAC±5%@50/60Hz
Surge Power

24000VA
Conversion Efficiency

0.93
Waveform

pure sine wave
Switch Time

≤10ms
Max.PV array power

18000W
MPPT operating voltage range

120VDC～450VDC
"Number of independent MPPTs/ Number of MPPT strings per circuit"

2
MPPT Max.Current

27A
Max.open-circuit voltage of PV array

500VDC
Max.PV charging current

260A
Charging Current

150A
Input Rated Voltage

230VAC
Input Voltage Range

170-280VAC(APL);90-280VAC(UPS)
Input Frequency Range

50/60Hz(adaptive)
Protection Level

IP54
Dimensions(H*W*D)

550*1000*210mm
Weight

144kg
Relative Humidity

5%-95%(non-condensing)
Altitude

<2000m
Operating Temperature

0℃-55℃
Storage Temperature

-15℃-60℃
